Multi-plate screw sludge dewatering machine integrates full-automatic control cabinet, flocculation tank, sludge thickening and dewatering body and liquid collecting tank, which can realize efficient flocculation under full-automatic operation condition and continuously complete sludge thickening and pressing and dewatering, and finally return the collected filtrate to flow or discharge.

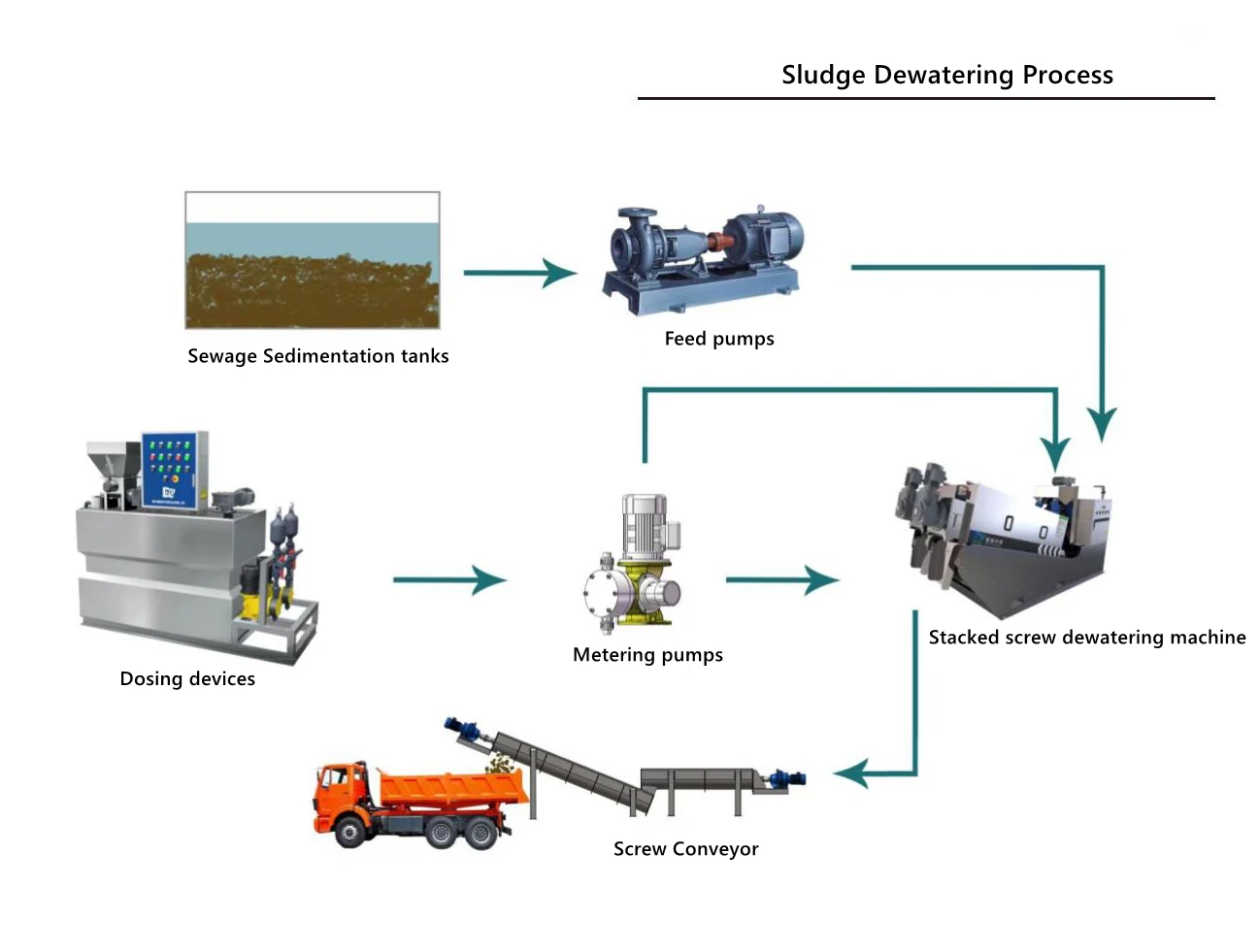

Working Processes
When the machine starts runing the sludge is pushed ino the filter cartridge from the feed inlet and then moves to the sludge cake oulet uder he pushing of helical axis blades. Because the gaps among the helieal axis blades will gradually get narrower and narrower,the sludge is under heavier and heaviepressure. then the water gradually comes out from it as a result of pressue differential and issues from the filering space between the fixed plates and the moving plates. Relying on the self-cleaning fuction of the fixed plates and the moving plates. clogging can be avoided. At last the sludge cakes arpushed by helical axis after being fully dewatered and then discharged from the diseharge outlet.
Product Overview
Stacked Screw Sludge Dewaterer is a new type of solid-liquid separation equipment which utilizes the principle of screw extrusion to realize the extrusion and dewatering of sludge through the strong extrusion pressure generated by the change of screw diameter and pitch, and the tiny gap between the travelling ring and the fixed ring.
Working Principle
Main advantages
1. The equipment is not easy to clog, no secondary pollution. 2. continuous automatic operation, unattended work. 3. Wide range of application, easy to deal with oil-containing sludge, applicable to a wide range of sludge concentration. 4. The equipment is light and durable, low running cost, low investment cost of the project.
Widely used in municipal sewage, food, beverage, slaughtering, breeding, printing and dyeing, petrochemical, papermaking, leather, pharmaceutical and other industries of sludge dewatering.
Keywords:
Sludge Dewatering Sewage Treatment Process Multi-disc Screw Press Solid Liquid Separator
