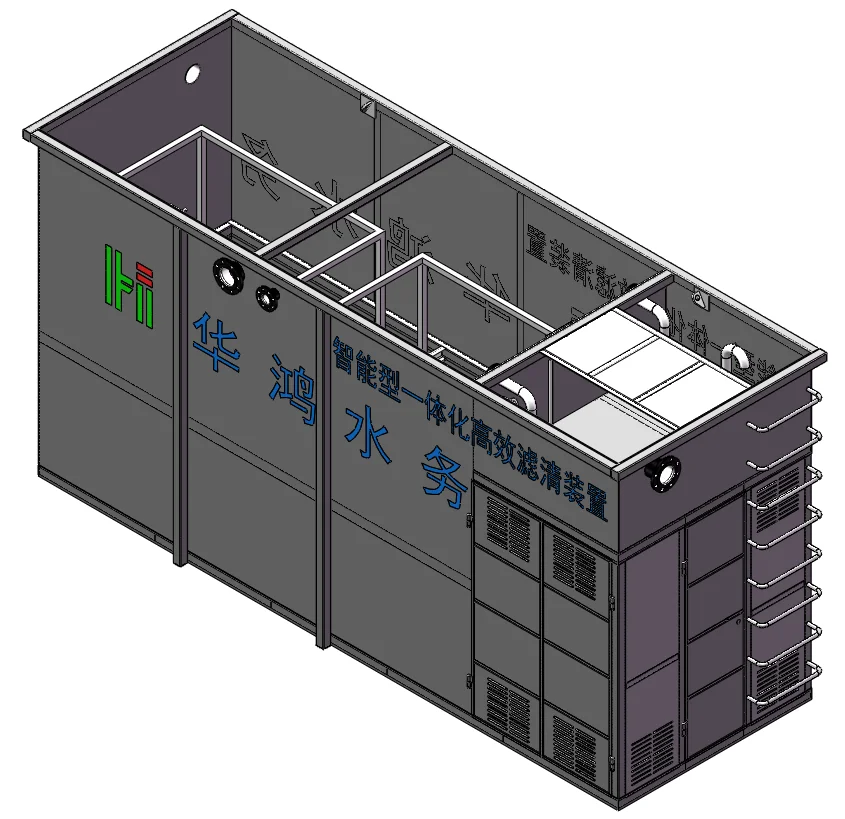

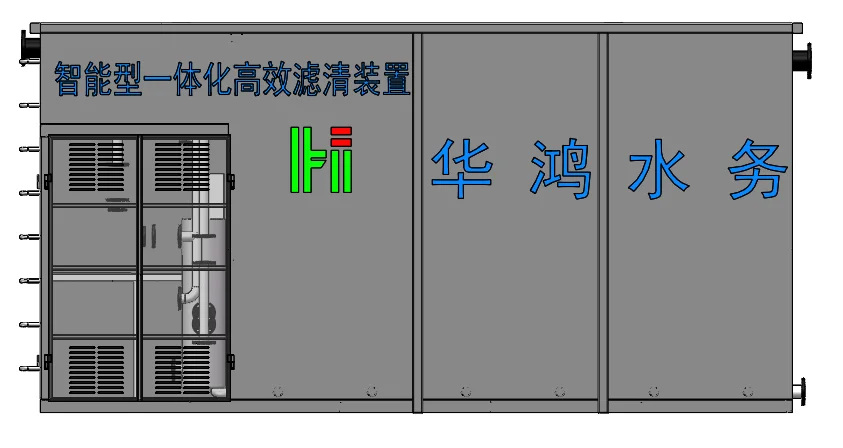

Intelligent integrated high-efficiency filtration device is a high-efficiency solid-liquid separation equipment, which adopts the membrane bioreactor (Membrane Bioreactor, referred to as MBR) technology is a new technology combining biological treatment technology and membrane separation technology, which can efficiently separate solid-liquid, get reusable water. It can also maintain a high concentration of microorganisms in the biological pool, with less residual sludge, effective removal of ammonia nitrogen, good effluent water quality, bacteria and viruses in the effluent water are substantially removed, low energy consumption and covers a small area.
Working Processes

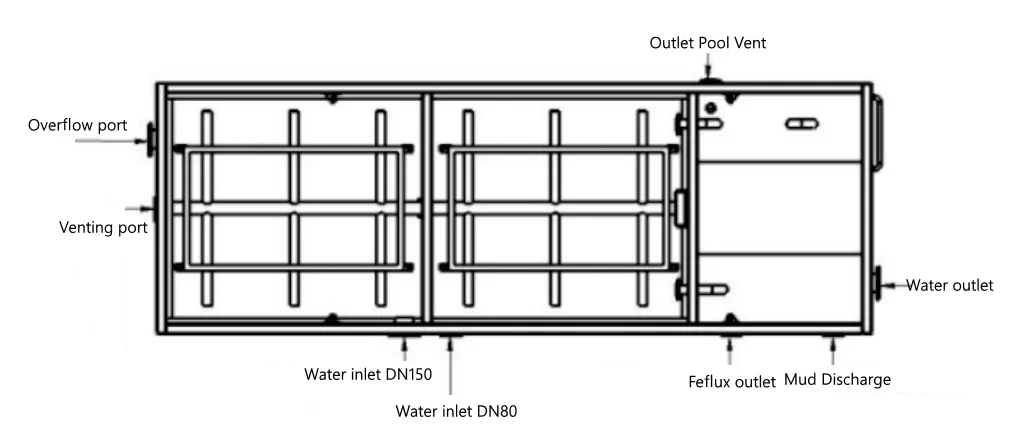

Intelligent integrated high-efficiency filtration plant mainly contains membrane reaction pool, membrane module, water production system, backwash system, clean water pool, aeration system, reflux emptying system, electrical automatic control system and other components. Raw water into the membrane reaction pool, when the water rises to a set height, start the aeration system aeration, 2 minutes later the pump start production of water. Producing water in the process of aeration, automatic backwash; when the concentration of sludge in the membrane reaction pool is too high, the reflux pump is automatically started, the activated sludge refluxed to the catchment pool, and the rest sent to the sludge digestion tank.
Reactor Principle

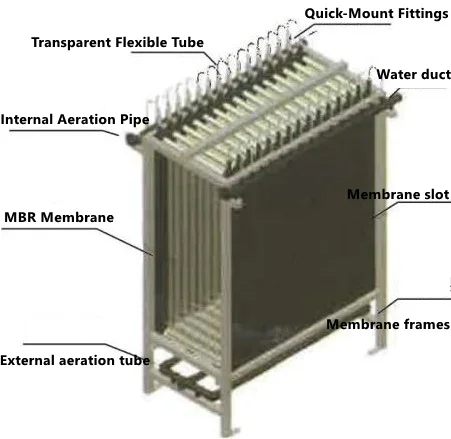

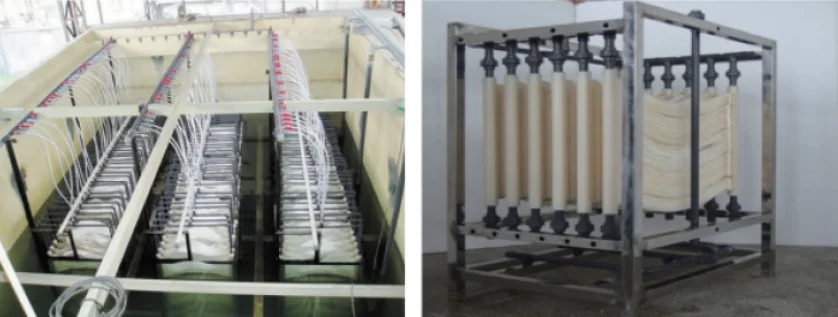

Membrane module consists of membrane element box (upper) and aeration box (lower), the membrane element box is equipped with a membrane element connected to the collection pipe through a hose, the aeration box is equipped with an aeration pipe, and each membrane element can be inserted and withdrawn individually for easy maintenance.

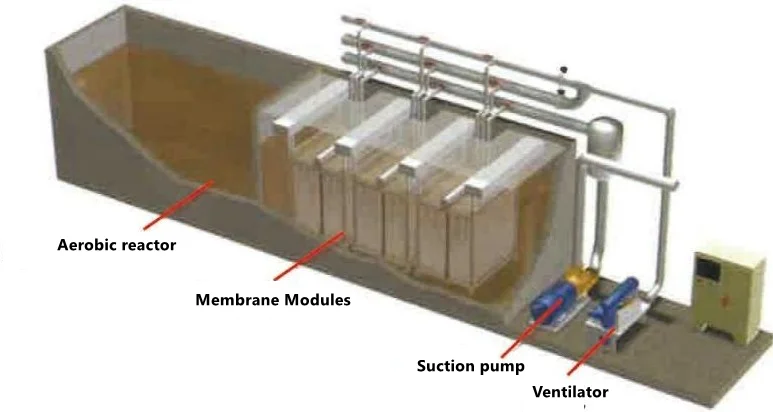

MBR Membrane-Bioreactor

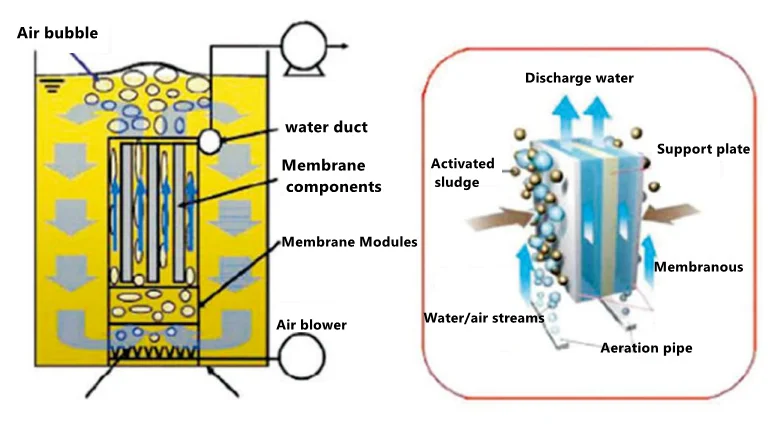

The core component of MBR is the high-performance submerged membrane module, which adopts negative pressure suction filtration, low energy consumption, simple structure of the flat membrane module, the surface of the membrane is not easy to be scaled and sludge under the mixing of aeration airflow and wastewater, which ensures stable operation of the membrane in the system.

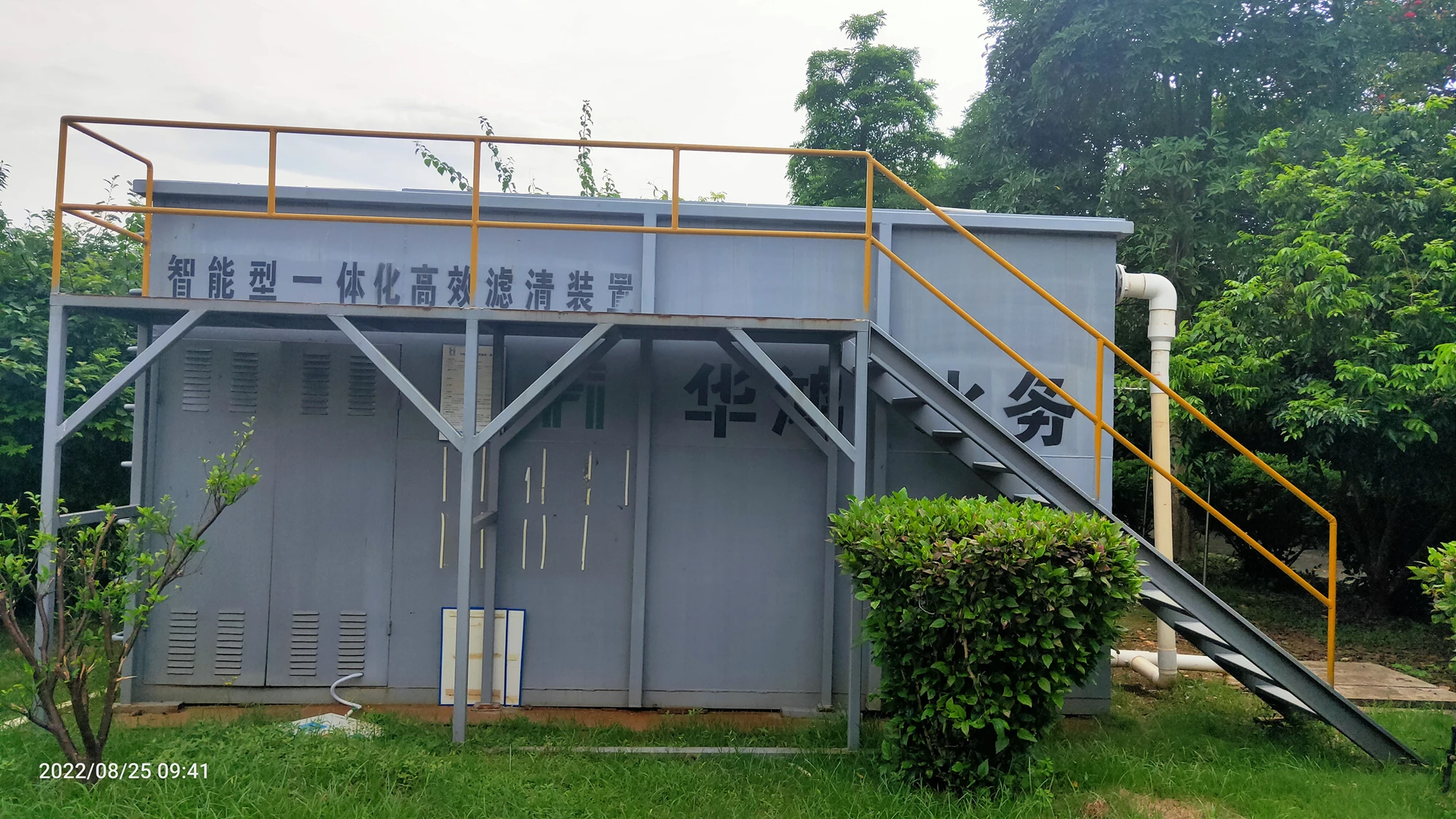

Suitable for residential living areas, hotels, schools, hospitals, villas, tourist attractions, factories staff dormitories, etc., as well as slaughterhouses, food industry, organic industrial wastewater treatment, especially for the requirements of the sewage to meet the standards of direct discharge or water reuse.
 | Main advantages 1、Fully automatic operation and management 2、High removal rate of organic pollutants, stable effluent and good water quality. 3、It covers a small area，Easy transportation 4、Membrane-bioreactor, low residual sludge production, reducing the sludge treatment costs 5、Online cleaning, prolonging the service life of membrane. 6、Water can be fully reused |
