Wastewater Sewage AO Biological Treatment Plant Water Treatment Machine for Farm
+
  • Wastewater Sewage AO Biological Treatment Plant Water Treatment Machine for Farm

The equipment adopts the world's advanced biological treatment process, integrating the removal of BOD5, COD, NH3-N, which is the most efficient sewage treatment equipment at present.

The equipment does not occupy ground space, low price, high efficiency, easy maintenance, and its treatment method is to use biochemical treatment technology - biological contact oxidation method, which consists of six parts: primary sedimentation tank, contact oxidation tank, secondary sedimentation tank, disinfection tank, sludge tank and ventilator. The equipment is suitable for burying underground and does not occupy any surface area. The average BOD removal rate of influent water is ≥80%, COD removal rate is ≥81%, and suspended solids removal rate is ≥80%.

Parameter/Model
WSZ-AO-1
WSZ-AO-3
WSZ-AO-5
WSZ-AO-7
WSZ-AO-10
WSZ-AO-15
WSZ-AO-20
WSZ-AO-30
Length (mm)
4500
7500
12000
14000
17000
25000
30000
42000
Width (mm)
1500
2280
2280
2760
2760
3000
3000
3000
Height (mm)
2000
2450
2450
2450
2450
2450
2800
3000
Water inlet DN
50
50
50
65
65
80
100
150
Water outlet DN
65
65
65
80
80
125
150
200
Design Inlet COD(mg/l)
400-450
Design Inlet BOD5(mg/l)
200-450
Design Inlet SS(mg/l)
220
Design Inlet H3-N(mg/l)
45
Design outlet BOD5(mg/l)
20
Design outlet COD(mg/l)
100
Design outlet SS(mg/l)
70
Design outlet H3-N(mg/l)
15
Working Processes

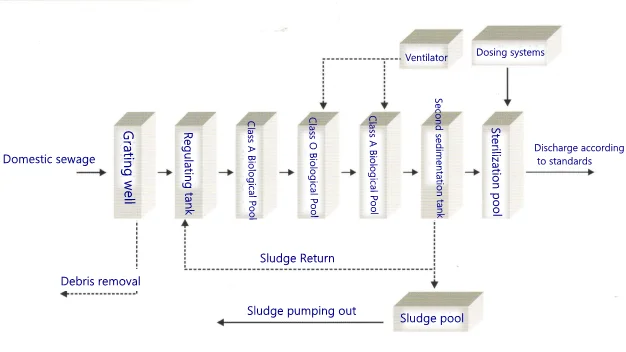

Integrated buried sewage treatment equipment to remove organic pollutants and ammonia nitrogen mainly depends on the AO biological treatment process in the equipment. The working principle is that, in the A level, due to the high depth of sewage organic matter, microorganisms are in anoxic state, They convert and decompose the organic ammonia in the sewage into NH3-N, use organic carbon as a donor, convert NO-2-N and NO-3-N into N2, and also use part of the organic carbon and NH3-N to synthesize new cellular material. Therefore, the A-level pool has the function of organic matter removal to reduce the load of the subsequent aerobic pool for nitrification, relying on the high depth of organic matter present in the raw water to complete denitrification, and ultimately eliminate nitrogen eutrophication pollution.


In the O-level, because the depth of organic matter has been greatly reduced, but there is still a certain amount of organic matter and high NH3-N exist. Among them, aerobic microorganisms decompose organic matter into CO2 and H2O; autotrophic bacteria (nitrifying bacteria) use inorganic carbon produced by decomposition of organic matter or CO2 in the air as a nutrient source, and convert NH-3-N in the sewage into N-2-ON and N-3-ON. The effluent of the O-level pond partially refluxed to the A-level pond, providing a receptor for the A-level pond, and ultimately eliminating nitrogen pollution through denitrification.

Application Areas
Mainly used in residential areas, villages, highway service areas, hotels, restaurants, hospitals, schools, shopping malls, ports, stations, airports, industrial and mining enterprises, tourist attractions, villa areas, and other domestic sewage treatment or various types of industrial organic sewage treatment.
