HDPE Purification tank Sewage Treatment Underground Domestic Sewage Treatment Plant
+
  • HDPE Purification tank Sewage Treatment Underground Domestic Sewage Treatment Plant

Specification
item
value
warranty
1 Year
productivity
2000L/Hour
weight (kg)
100
Processing Type
filtration
Power(W)
1kW
Voltage
220V, 110V
video outgoing-inspection
Provided
machinery test report
Provided
core components
Pump
place of origin
China

Guangxi
Dimension(L*W*H)
210cm x 95cm x 175cm
Product name
Purification Tank
Material
HDPE tank body
Sewage treatment capacity
2.5m³/day
Technology
AO-MBBR + Filtration Process
Installation Type
Underground Installation
Size
210cm x 95cm x 175cm
Control Method
Control Method
Medium Temperature
0-40°C
Service Life
Over 30 Years
Equipment weight
100 kg



1. Product structure: integrated molding, adjustable color, wall thickness can be customized 10-70mm, buried depth up to 1.5-2.0 meters.


2. Standardized Components: Partitions, water collection channels, and drainage are all processed by high precision CNC machining to ensure dimensional accuracy.



3. Suitable for multiple processes: SBR, AO, AAO, MBBR, etc.



4. Installation method: Can be used above ground or buried underground as required.



5. HDPE material offers excellent structural strength and corrosion resistance. Service life can reach over 30 years.

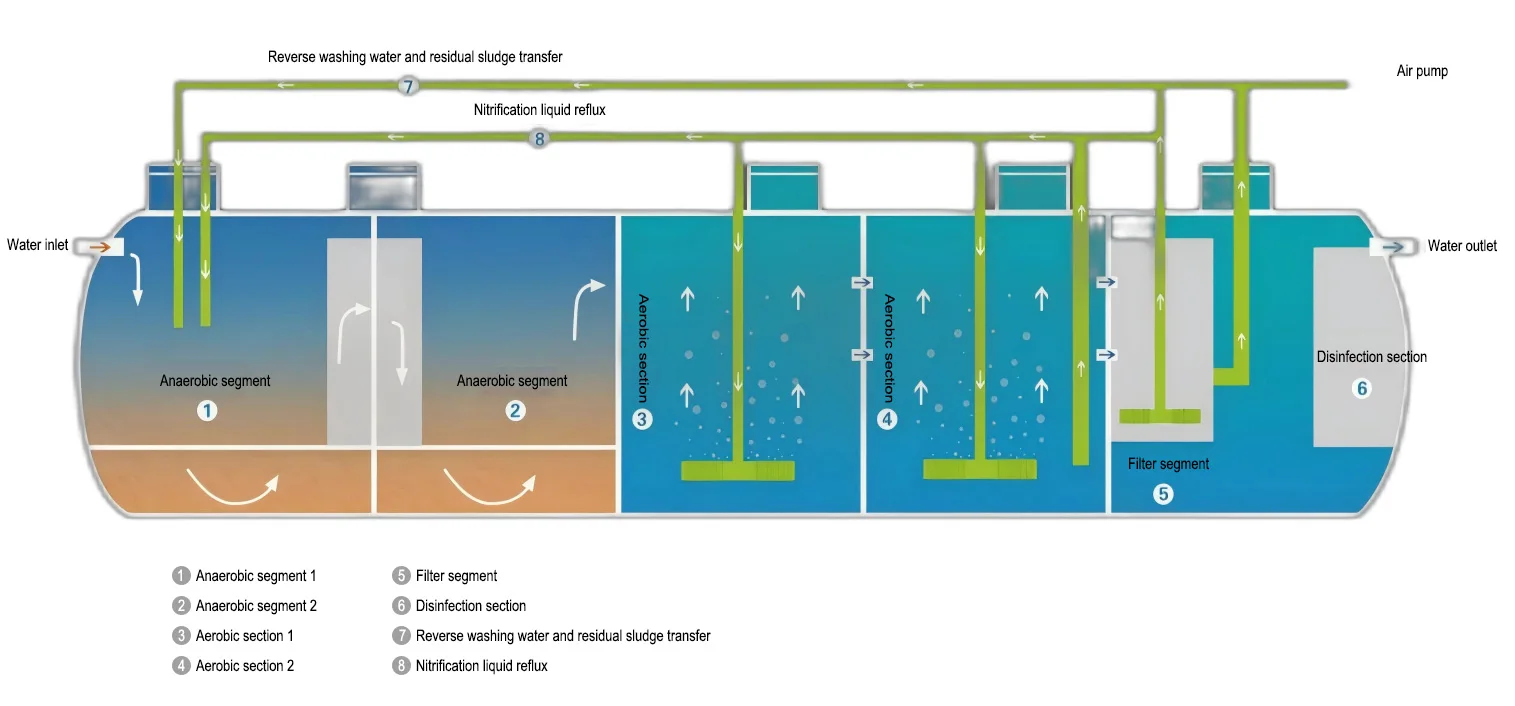

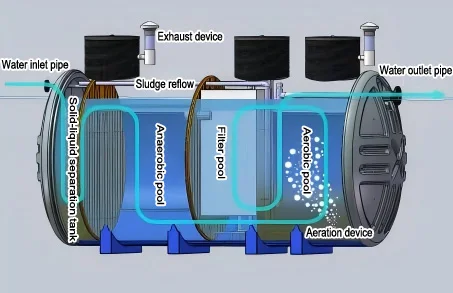

Process Flow Chart



①.The AAO-MBBR+ filtration system is an integrated wastewater treatment unit based on the MBBR process utilizing biofilm technology, combining biological filtration with biofilm processes.
②.Subsequently, the wastewater enters the aerobic tank, where it is treated by the biofilm on the suspended fillers under aeration conditions.
③.The sewage is collected into the equipment and first enters the solid-liquid separation tank for pretreatment. Under the condition of anoxic environment, the biofilm on the filler degrades organic matter and removes large particles and suspended solids to improve the biodegradability of sewage;
④.The bottom nitrification liquid is refluxed to the front anoxic pool for denitrification treatment, and the phosphorus is removed by electric discharge;
⑤.The treated water then enters a biological filter tank for filtration, removing suspended solids. Finally, it flows into the disinfection tank, where chlorine tablets disinfect the water to complete the final treatment process.
Model
YKL-1.1
YKL-2.7
YKW-1
YKW-2
YKW-3
YKW-4
YKW-5
YKW-6
Tank capacity(m³/day）


1.1


2.7


6


11


16


21


26


32
Thickness (mm)
10
10
70
70
70
70
70
70
Dimensions (mm)
1500*750*1350
2100*950*1750
2000*2500*2350
2000*4250*2350
2000*6000*2350
2000*7750*2350
2000*9500*2350
2000*11250*2350

Technical Highlights

Blow molding process

1. Blowing process: The plastic particles are fully plasticized by the extruder and then blown into shape. The products have good tensile strength, impact resistance and toughness.

2. One-piece molding: Reduces production steps and material waste, has high cost effectiveness, one-piece molding, no leakage.

HDPE material advantage

1.Strong corrosion resistance, can resist the erosion of chemical substances.

2.Not easy to wear and tear, long service life.

3.Strong impact resistance, can withstand external impact.

4.Good insulation

5.Good performance at low temperatures.

6.Relatively low cost

7.Environmental protection, recycling and reuse

Smart Cloud Platform

Homestay sewage treatment installation
Rural sewage treatment installation
Scenic area wastewater treatment system

Product Packaging
