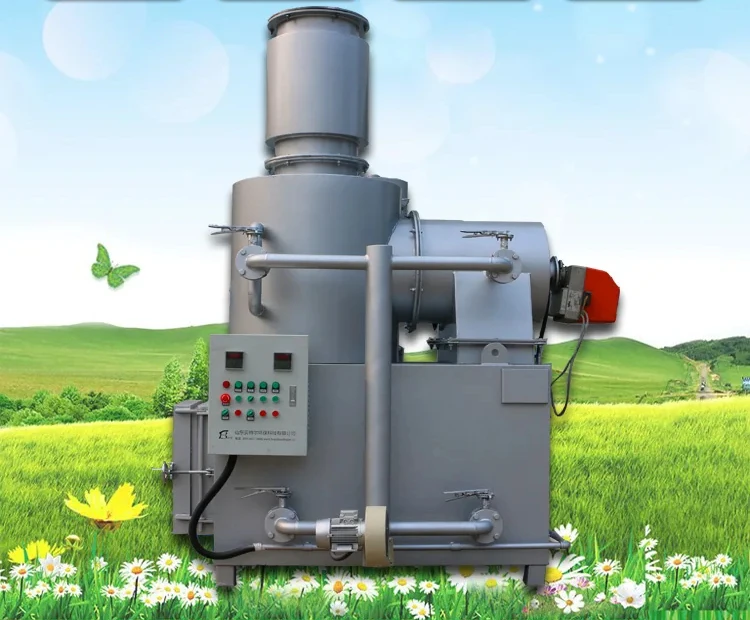

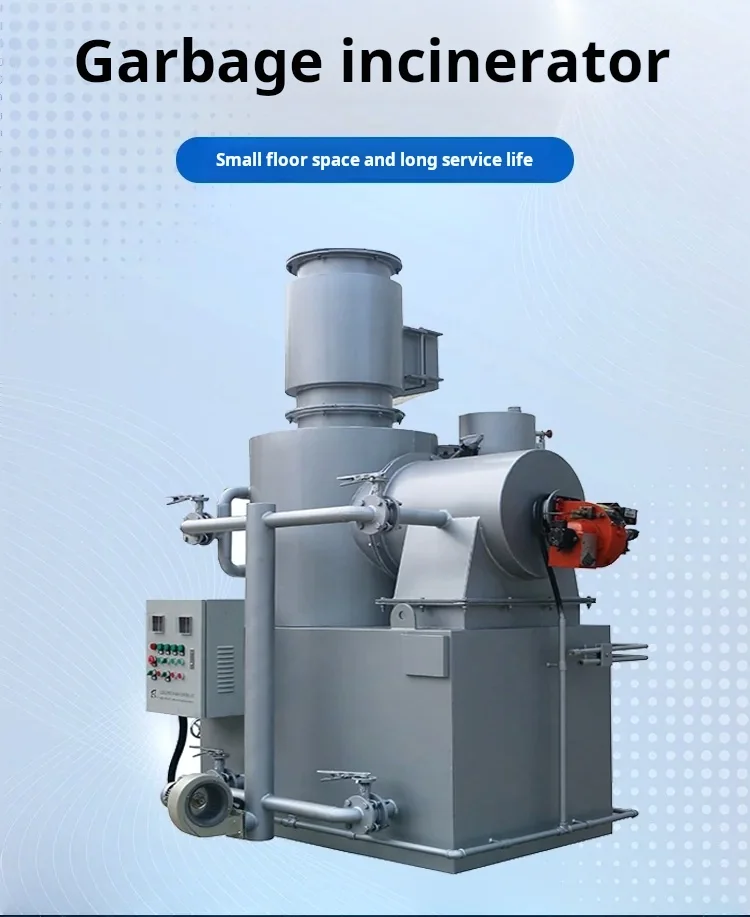

Factory direct hospital medical waste incinerator dead animal incinerator industrial solid waste incinerator equipment
Product Description
The garbage incinerator adopts the current advanced primary pyrolysis gasification + surround wind mixing combustion + secondary incineration + combustion treatment of incineration. Garbage incinerator has garbage pre-treatment system, incineration system, smoke biochemical dust removal system and gas generator (auxiliary ignition incineration) four major systems. Integration of automatic feeding, screening, drying, incineration, ash removal, dust removal, automatic control in one. This equipment has advanced and excellent technology.
Specification
item
value
type
Food Waste Disposer
warranty
1 Year
material
Carbon steel or 304 stainless steel
weight (kg)
2800
Power
2 kw
place of origin
China
Guangxi
brand name
Customized
model number
WFS-50
machinery test report
Provided
video outgoing-inspection
Provided
core components
motor, Other, Bearing, PLC, Gearbox, Gear
Name
High temperature incinerator
Incineration capacity
20-500 kg / time
Voltage
380 (V)
Advantage
no smoke or odor
Service life
15-20 Years
Application
Incineration of household waste, medical waste, animal carcasses
Feature
Small size, small footprint
Certification
CE
Air blower
0.35W
MOQ
1 Unit
ITEM/MODEL
WFS-20
WFS-30
WFS-50
WFS-150
WFS-300
WFS-500
TREATMENT CAPACITY
20-30KG/TIME
30-50KG/TIME
50-100KG/TIME
150-200KG/TIME
300-400KG/TIME
500-600KG/TIME
INCINERATRORDIMENSION ( L * H * B)
1.7m x 1.2m x 2.3m
1.9m x 1.3m x 2.6m
2.1m x 1.4m x 3m
2.3m x 1.65m x 3.5m
2.45m x 1.8m x 3.77m
3.1m x 2.2m x 4.85m
FEEDING DOOR SIZE (mm)
390mm x 490mm
390mm x 510mm
600mm x 750mm
670mm x 870mm
800mm x 1000mm
890mm x 1220mm
CHIMNEY SIZE (∅)
∅ 219 Outer Diameter
∅ 273 Outer Diameter
∅ 273 Outer Diameter
∅ 273 Outer Diameter
∅ 273 Outer Diameter
∅ 425 Outer Diameter
AIR BLOWER
0.25W
0.25W
0.25W
0.55W
0.55W
0.55W
OIL CONSUMPTION
6.51KG/Hour
6.51KG/Hour
6.51KG/Hour
6.51KG/Hour
14.89 KG/Hour
14.89 KG/Hour
WEIGHT （KG)
2300
2700
5000
7000
8800
18000
The garbage incinerator consists of primary combustion chamber, secondary combustion chamber, cyclone dust collector, chimney, flue, piping system, high-pressure blower, secondary pressure induced draft fan, primary combustion machine, secondary combustion machine electric control cabinet, temperature display device, detection device and other components.
Product Advantages
1、Automatic feeding and discharging system is provided to avoid possible pollution caused by manual operation.
2、Secondary combustion design, the furnace temperature of 1100 ℃ ~ 1300 ℃ or more, the flue gas for reprocessing, colorless and non-toxic, combustible materials completely ashed, ash rate of less than 3%;.
3、Small volume, small equipment footprint
4、Adopting full-automatic control technology, the important parameters of incineration treatment process realize monitoring and control, high degree of automation.
